Introduction
This is a naive algorithm to check if a person is looking at the Phone from the input image, given an Object Detection Model and Gaze Estimation Model
Idea
We assume that:
- The Object Detection Model detects a list of specified object
Phone+Human - The Gaze Estimation Model predicts a human’s
gaze vector(starts from pointgaze_startand goes toward pointgaze_end)
Generally, the Gaze Estimation Model will predict a vector, but practically, humans don’t look at only 1 specific “ray” but a “cone-like” FOV. Therefore, we define the gaze’s FOV as the angle that starts from gaze_start and receives the gaze vector as the angle bisector. The idea is to check if is there is at least 1 Obj object intersects with the FOV. The Obj object is considered to intersect with the FOV if it satisfies 2 conditions:
- (1) The object’s confidence score must not be lower than the specific confidence threshold
conf_thres($0 < conf_thres <= 1$). This condition is to reduce the False Positive phone detection error. - (2) The
FOVmust intersect with at leastcount_thresedges of the object’s bounding box (1 <=count_thres<= 4).
If there is at least 1 Phone object that satisfies these conditions, we say that a person is looking at the phone.
Configuration
These values may be updated after experiments to bring the best possible accuracy
conf_thres: 0.5 (0 <conf_thres<= 1)count_thres: 1 (1 <=count_thres<= 4)fov_degree: 30 (FOV’s magnitude, in degree unit, 0 <=fov_degree<= 90)
Demo

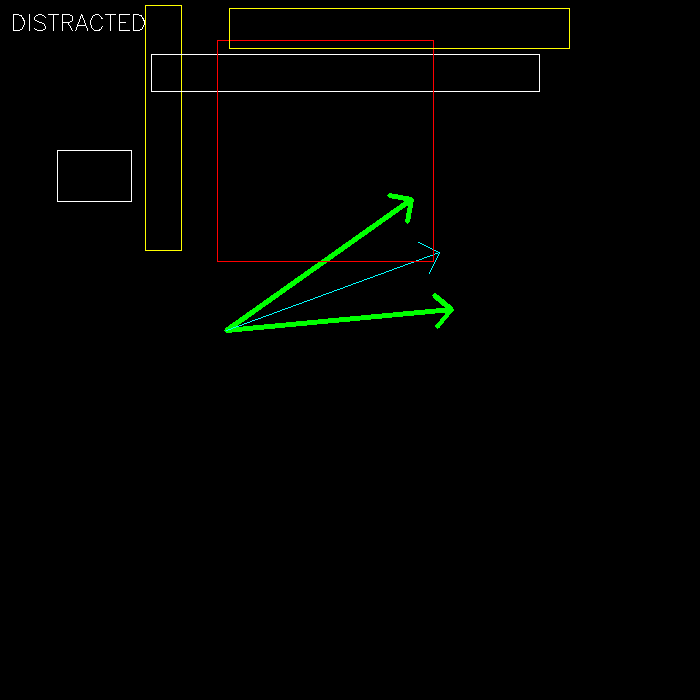

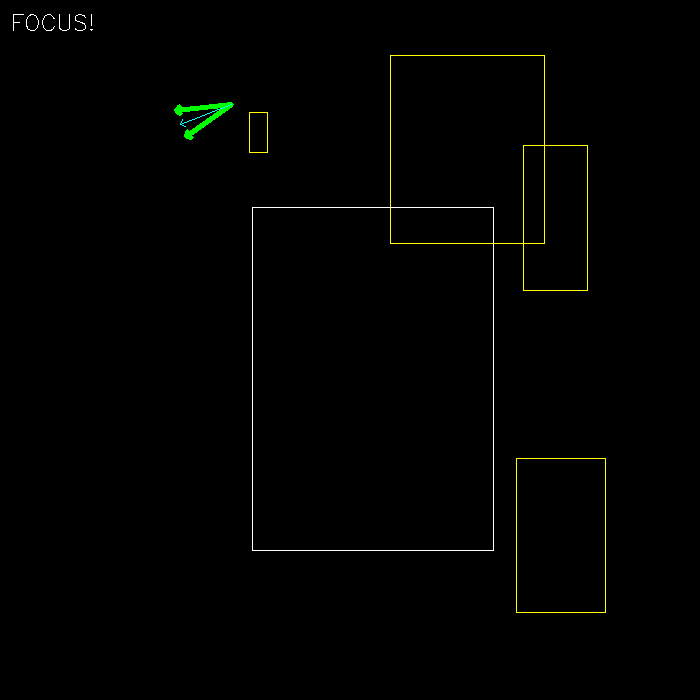

In the demo script, I generated a random gaze_vector, as well as 5 Phone objects. The logic is applied to check if the human is looking at the Phone (Distracted) or not (Focus), as you can see in these 2 example images:
In these images, we have:
- Green vectors represent
FOV - Light blue vector represents
gaze vector - Rectangles are
Phoneobjects (assume that all of them belong to classPhone):- White rectangles are the objects that do not satisfy the confidence score condition (1)
- Yellow rectangles are the objects that do not satisfy the bounding box condition (2)
- Red rectangles are the objects that satisfy both conditions
import cv2
import numpy as np
from loguru import logger
def get_rotation(start_point, center_point, rad):
"""Find the point T(x_T, y_T) that was made by rotating the point start_point(x_S, y_S) around the center point center_point(x_C, y_C)
Args:
start_point: start point as format (x, y)
center_point: center point as format (x, y)
rad: rotation angle in radian unit, counterclockwise order
Returns:
T as shape [x_T, y_T]
"""
T = [0, 0]
T[0] = (start_point[0] - center_point[0]) * math.cos(rad) - (start_point[1] - center_point[1]) * math.sin(rad) + center_point[0]
T[1] = (start_point[0] - center_point[0]) * math.sin(rad) + (start_point[1] - center_point[1]) * math.cos(rad) + center_point[1]
return T
def find_angle(start_point, end_point):
"""Find the angle of the vector start_point->end_point (with respect to Ox axis, in clockwise order)
Args:
start_point: start point of the vector as format (x, y)
end_point: "end" point of the vector as format (x, y)
Returns:
angle in radian
"""
return math.atan2(end_point[1] - start_point[1], end_point[0] - start_point[0])
def is_anglerange_in_fovrange(fov_min, fov_max, angle_1, angle_2):
"""Check if the angle range [min(angle_1, angle_2), max(angle_1, angle_2)] is inside/overlaps with the FOV range [fov_min, fov_max]
Args:
fov_min (float): lower bound of the fov range (in radian unit, -pi <= range_min <= pi)
fov_max (float): upper bound of the fov range (in radian unit, -pi <= range_max <= pi)
angle_1 (float): first bound of the angle range (in radian unit, -pi <= angle_1 <= pi)
angle_2 (float): second bound of the angle range (in radian unit, -pi <= angle_1 <= pi)
Constraint:
0 <= fov <= math.pi / 2 (90 degree)
0 <= angle <= math.pi (180 degree)
fov_min <= fov_max
Returns:
True if angle range the FOV range, False otherwise
"""
angle_min = min(angle_1, angle_2)
angle_max = max(angle_1, angle_2)
if fov_min <= 0 and fov_max >= 0:
if fov_min >= -math.pi / 2: ## -math.pi / 2 <= fov_min <= 0 && 0 <= fov_max <= math.pi / 2
logger.info("case 1")
if angle_max < fov_min: # -math.pi <= angle_max < fov_min
return False
elif angle_max <= fov_max: # fov_min <= angle_max <= fov_max
return True
elif angle_max <= fov_min + math.pi: # fov_max < angle_max <= fov_min + math.pi
return angle_max - math.pi <= angle_min <= fov_max
else: # fov_min + math.pi < angle_max <= math.pi
return fov_min <= angle_min <= fov_max
else: ## -math.pi <= fov_min <= -math.pi / 2 && math.pi / 2 <= fov_max <= 0
logger.info("case 2")
if angle_max <= fov_min: # -math.pi <= fov_min <= -math.pi / 2
return True
elif angle_max <= 0: # fov_min < angle_max <= 0
return angle_min <= fov_min
elif angle_max < fov_max: # 0 < angle_max < fov_max
return angle_min <= angle_max - math.pi
else: # fov_max <= angle_max <= math.pi
return True
else:
if fov_max <= 0:
logger.info("case 3")
## fov_min <= fov_max <= 0
if angle_max < fov_min: # -math.pi <= angle_max < fov_min
return False
elif angle_max <= fov_max: # fov_min <= angle_max <= fov_max
return True
elif angle_max <= fov_max + math.pi: # fov_max < angle_max <= fov_max + math.pi
return angle_max - math.pi <= angle_min <= fov_max
else: # fov_max + math.pi < angle_max <= math.pi
return fov_min <= angle_min <= angle_max - math.pi
else: ## 0 <= fov_min <= fov_max
logger.info("case 4")
if angle_max < 0: # -math.pi <= angle_max < 0
return False
elif angle_max < fov_min: # 0 <= angle_max < fov_min
return angle_min <= angle_max - math.pi
elif angle_max <= fov_max: # fov_min <= angle_max <= fov_max
return True
else: # fov_max < angle_max <= math.pi
return angle_max - math.pi <= angle_min <= fov_max
return False
def is_overlapped(bbox1, bbox2):
"""Check if the 2 bounding boxes are overlapped with each other (True) or not (False)
Args:
bbox1: the first bounding box as format [xmin, ymin, xmax, ymax(, conf)]
bbox2: the second bounding box as format [xmin, ymin, xmax, ymax(, conf)]
Returns:
True if bbox1 is overlapped with bbox2, False otherwise
"""
horizontalValid = False
verticalValid = False
if (bbox1[0] <= bbox2[2] and bbox1[0] >= bbox2[0]):
horizontalValid = True
elif (bbox2[0] <= bbox1[2] and bbox2[0] >= bbox1[0]):
horizontalValid = True
if (bbox1[1] <= bbox2[3] and bbox1[1] >= bbox2[1]):
verticalValid = True
elif (bbox2[1] <= bbox1[3] and bbox2[1] >= bbox1[1]):
verticalValid = True
return (horizontalValid and verticalValid)
def find_intersect_obj_indices(gaze_start, gaze_end, objects, bbox, fov_degree=30, conf_thres=0.5, count_thres=1):
"""Check if any object intersects with the "fov" that starts from "gaze_start" and receives gaze vector as the angle bisector
Args:
- gaze_start: start point of the gaze vector as format (x, y)
- gaze_end: "end" point of the gaze vector as format (x, y)
- objects: list of objects, each object has format [xmin, ymin, xmax, ymax, conf] (xmin, ymin, xmax, ymax is bounding box, conf is confidence score)
- bbox: only use objects which are overlapped with the bounding box bbox [xmin, ymin, xmax, ymax(, conf)]
- fov_degree (int, optional): the absolute value of the "fov" in Degree unit. Defaults to 30 (this is a configuration value, and must be >= 0 and < 90)
- count_thres (int, optional): the minimum number of corners that lie within "gaze angle" to be considered as "intersect". Default to 1 (this is a configuration value, and must be >= 1 and <= 4)
- conf_thres (float, optional): confidence threshold as many false positive "Phone" detection may appear. Default to 0.5 (this is a configuration value, and must be > 0 and < 1)
Returns:
- fov_p1: the point to represent the first vector of the "fov" as format (x, y)
- fov_p2: the point to represent the second vector of the "fov" as format (x, y)
- intersect_obj_indices: indices of intersect objects (if any)
- outside_obj_indices: indices of object outside of the bbox (if any)
- unseen_obj_indices: indices of object inside of the bbox but is not looked at (if any)
"""
# convert angle to radian unit
rad = math.pi * fov_degree / 360
#find 2 points represent 2 vectors of the "gaze angle"
fov_p1 = get_rotation(gaze_end, gaze_start, rad)
fov_p2 = get_rotation(gaze_end, gaze_start, -rad)
fov_a1 = find_angle(gaze_start, fov_p1)
fov_a2 = find_angle(gaze_start, fov_p2)
fov_amin = min(fov_a1, fov_a2)
fov_amax = max(fov_a1, fov_a2)
logger.info("fov_amin: {}".format(fov_amin * 180 / math.pi))
logger.info("fov_amax: {}".format(fov_amax * 180 / math.pi))
intersect_obj_indices = list()
outside_obj_indices = list()
unseen_obj_indices = list()
for idx, obj in enumerate(objects):
if is_overlapped(obj, bbox) is False:
outside_obj_indices.append(idx)
continue
# make sure object's confidence score satisfies the confidence threshold
if obj[4] >= conf_thres:
logger.info("object {}".format(idx))
count = 0
# 4 corners of the object bounding box, in order is top-left, top-right, bottom-left, bottom-right
corner_pts = [(obj[0], obj[1]), (obj[0], obj[3]), (obj[2], obj[1]), (obj[2], obj[3])]
# the angle from "gaze_start" to each corner
corner_angles = list()
for corner_pt in corner_pts:
corner_angle = find_angle(gaze_start, corner_pt)
logger.info("corner: {}".format(corner_angle * 180 / math.pi))
corner_angles.append(corner_angle)#find_angle(gaze_start, corner_pt))
# check if the FOV intersects with the top edge (from top-left corner to top-right corner)
if is_anglerange_in_fovrange(fov_amin, fov_amax, corner_angles[0], corner_angles[1]):
count += 1
# check if the FOV intersects with the bottom edge (from bottom-left corner to bottom-right corner)
if is_anglerange_in_fovrange(fov_amin, fov_amax, corner_angles[2], corner_angles[3]):
count += 1
# check if the FOV intersects with the left edge (from top-left corner to bottom-left corner)
if is_anglerange_in_fovrange(fov_amin, fov_amax, corner_angles[0], corner_angles[2]):
count += 1
# check if the FOV intersects with the right edge (from top-right corner to bottom-right corner)
if is_anglerange_in_fovrange(fov_amin, fov_amax, corner_angles[1], corner_angles[3]):
count += 1
# object's bounding box intersects with the FOV
if count >= count_thres:
logger.warning("INSIDE!")
intersect_obj_indices.append(idx)
else:
logger.warning("OUTSIDE!")
unseen_obj_indices.append(idx)
return fov_p1, fov_p2, intersect_obj_indices, outside_obj_indices, unseen_obj_indices
def generate_object(image_size):
"""Generate a random object
Args:
image_size (int): input image size (width = height = image_size)
Returns:
object as format [xmin, ymin, xmax, ymax, conf] (xmin, ymin, xmax, ymax is bounding box, conf is confidence score)
"""
xmax = np.random.randint(1, image_size)
xmin = np.random.randint(xmax)
ymax = np.random.randint(1, image_size)
ymin = np.random.randint(ymax)
# confidence score
conf = np.random.rand()
return [xmin, ymin, xmax, ymax, conf]
def generate_gaze(bbox):
"""Generate a "gaze vector" that starts from gaze_start and goes toward "gaze_end"
Args:
image_size (int): input image size (width = height = image_size)
Returns:
gaze_start as format (x, y)
gaze_end as format (x, y)
"""
while True:
gaze_start_x = np.random.randint(bbox[0], bbox[2])
gaze_start_y = np.random.randint(bbox[1], bbox[3])
gaze_end_x = np.random.randint(bbox[0], bbox[2])
gaze_end_y = np.random.randint(bbox[1], bbox[3])
# gaze_start = np.random.randint(image_size, size=2)
# gaze_end = np.random.randint(image_size, size=2)
# # to make sure "gaze_start" and "gaze_end" are not the same point
if gaze_start_x != gaze_end_x or gaze_start_y != gaze_end_y:
break
return (gaze_start_x, gaze_start_y), (gaze_end_x, gaze_end_y)
if __name__ == "__main__":
#configuration
fov_degree = np.random.randint(30, 91) #90
logger.info("fov degree: {}".format(fov_degree))
conf_threshold = 0.5
count_threshold = 1
# image size
image_size = 700
# number of objects
num_objects = 10
# generate objects
objects = list()
for i in range(num_objects):
obj = generate_object(image_size)
objects.append(obj)
# generate human bouding box
human = generate_object(image_size)
#generate gaze vector
gaze_start, gaze_end = generate_gaze(human)
# find the list of object inside "fov"
fov_p1, fov_p2, intersect_obj_indices, outside_obj_indices, unseen_obj_indices = find_intersect_obj_indices(gaze_start, gaze_end, objects, human, fov_degree=fov_degree, conf_thres=conf_threshold)#, count_thres=count_threshold)
# image
image = np.zeros((image_size, image_size, 3), dtype=np.uint8)
# visualize human bounding box
cv2.rectangle(image, (human[0], human[1]), (human[2], human[3]), (255, 0, 0))
# visualize fov (green)
fov_color = (0, 255, 0)
cv2.arrowedLine(image, gaze_start, (int(fov_p1[0]), int(fov_p1[1])), fov_color, 3)
cv2.arrowedLine(image, gaze_start, (int(fov_p2[0]), int(fov_p2[1])), fov_color, 3)
# visualize gaze vector (sky blue)
gaze_color = (255, 255, 0)
cv2.arrowedLine(image, gaze_start, gaze_end, gaze_color, 1)
# visualize object
for idx, obj in enumerate(objects):
if idx in intersect_obj_indices: # object in fov, color in red
color = (0, 0, 255)
elif idx in outside_obj_indices: #object outside human bounding box, color in white
color = (255, 255, 255)
elif idx in unseen_obj_indices: # object out of fov and inside human bounding box, color in yellow
color = (0, 255, 255)
else:
continue
# if obj[4] >= conf_threshold:
cv2.rectangle(image, (obj[0], obj[1]), (obj[2], obj[3]), color)
# the human is looking at a phone
if len(intersect_obj_indices) > 0:
cv2.putText(image, "LOOKING AT PHONE!", (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 0.75, (255, 255, 255))
cv2.imshow("preview", image)
cv2.waitKey()
cv2.imwrite("example.png", image)
